4D fractional CO₂ laser
Vaginal rejuvenation
Labia brightening
Skin tightening
360° circular emission
3D/4D modes
Non-surgical intimate care

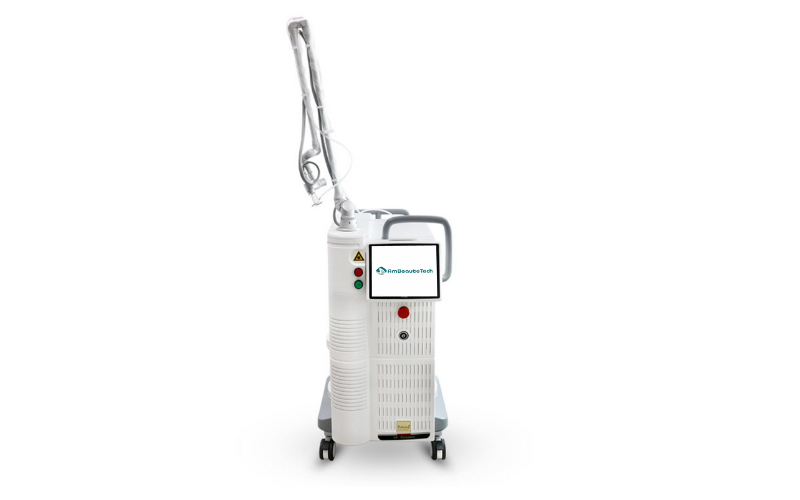

The 4D CO₂ Fractional Laser is a multifunctional medical aesthetic system designed for intimate rejuvenation and facial skin resurfacing. Using a 10600nm wavelength and advanced 360° emission technology, it delivers controlled thermal energy deep into the mucosal and dermal layers to stimulate collagen regeneration, tighten tissues, and improve overall elasticity and hydration.
CO₂ Fractional Laser: Delivers microthermal columns of energy into the skin or mucosa, creating controlled micro-injuries that trigger collagen remodeling and skin tightening. The 360° scanning technology ensures even coverage for both vaginal walls and facial areas, with minimal downtime and high safety.
[Technology principle diagram will be inserted here]
The user-friendly touchscreen panel allows practitioners to select scan shapes, adjust pulse width, energy level, distance, and scan modes across 3D, 4D, and private applications. Parameters are displayed in real-time for safe, efficient operation.
[Operation interface image will be inserted here]
Vaginal tightening and rejuvenation
Improving vaginal sensitivity and moisture
Labia brightening and pigment reduction
Postnatal vaginal recovery and anti-aging
Facial treatments: wrinkle removal, skin tightening, pores refinement
Stretch mark reduction

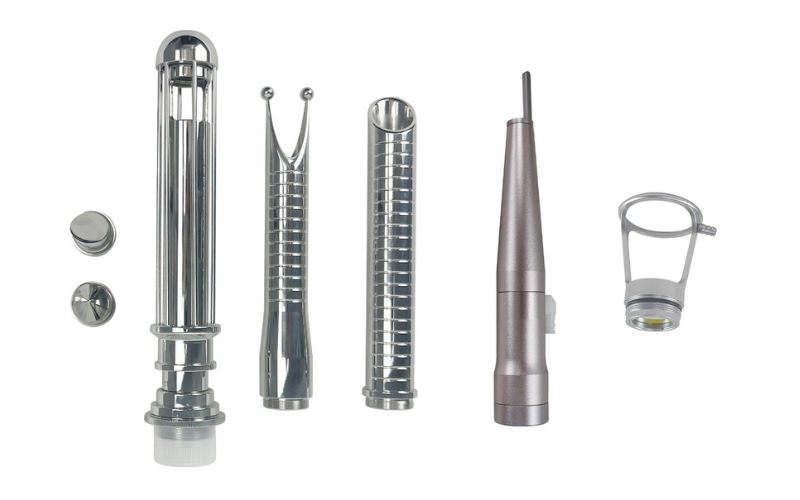

360° circular emission for full vaginal wall coverage
3D & 4D scanning modes for different tissue layers
Multiple scan shapes: circle, hexagon, triangle, square, line
Touchscreen interface with adjustable parameters
Fractional CO₂ laser with sealed-off technology
| Parameter | Value |
|---|---|
| Wavelength | 10600nm |
| Laser Power | 1–40W |
| Spot Size | 0.02–0.05 mm² |
| Aiming Beam | 635nm red semiconductor laser, <5mW |
| Working Modes | Continuous, Single Pulse, Interval Pulse, Super Pulse |
| Scan Shapes | Circle, Triangle, Square, Rectangle, Hexagon, Line |
| Scan Area | Max 20×20 mm |
| Scan Speed | ≥10 m/s |
| Distance Range | 0.1–2.6mm |
| Cooling System | Air Circulation |
| Power Supply | 220V |
| Machine Size | 65×48×117 cm |
| Net Weight | 60 kg |
3D Mode: Pulse width, energy, and stay time adjustable
4D Mode: Sequential scanning for deep-layer tightening
Private Mode: Targeted vaginal therapy with controlled pulse delivery
Avoid sexual activity for at least 7 days
Maintain genital hygiene
Hydrate and rest adequately
Gynecology clinics, women's health centers, aesthetic clinics, and professional beauty institutions offering intimate wellness and skin resurfacing services.
